image Thermal Devices for Combat Vehicles and Tanks

Upgraded gunners sight

TPN-1-AM

  • Designed to replace the night vision sight in T-64 and T-72 tanks
  • Features a cooled type of infrared sensor. Increases night firing capabilities from 0.5 miles to 3.1 miles
  • NATO Stock Number

Overview

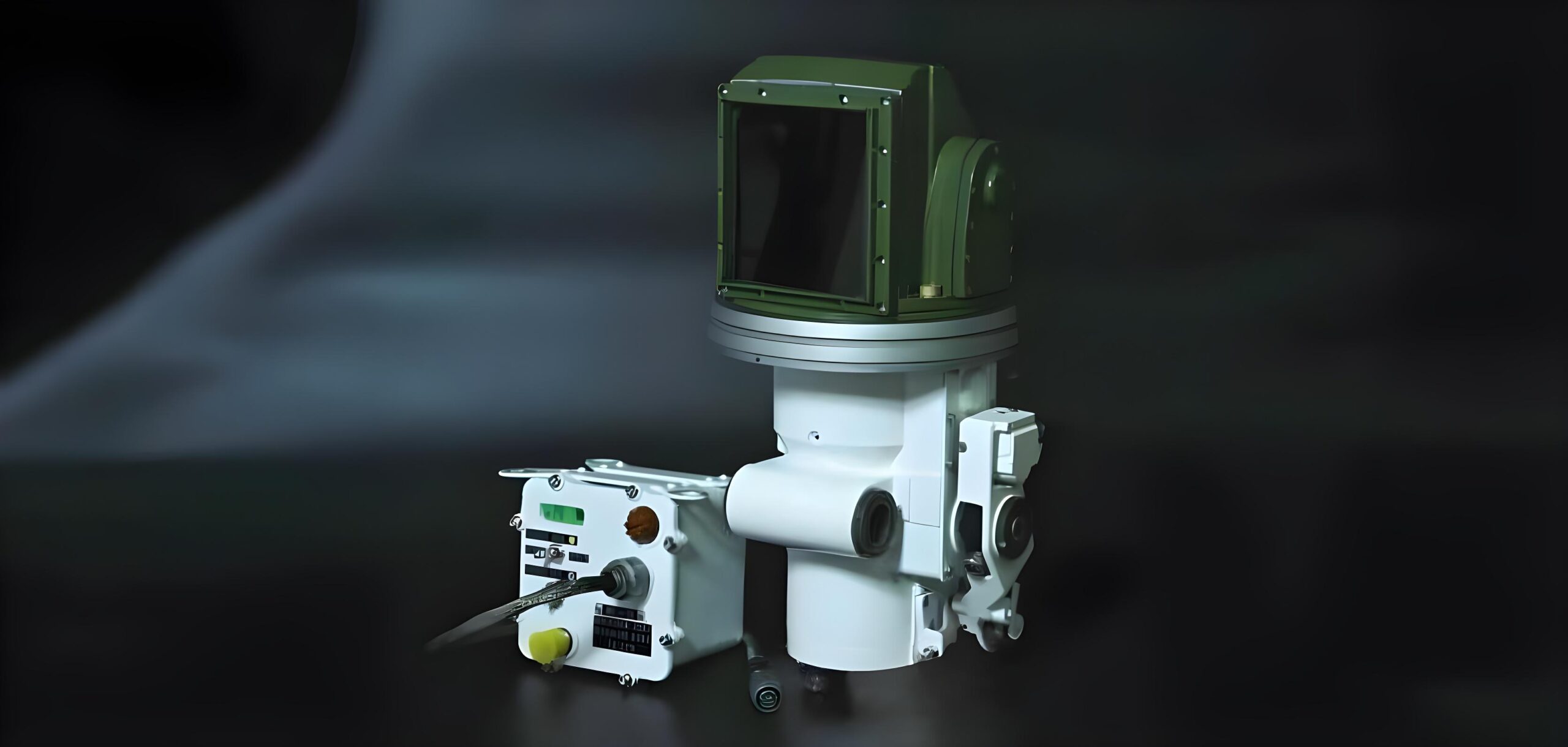

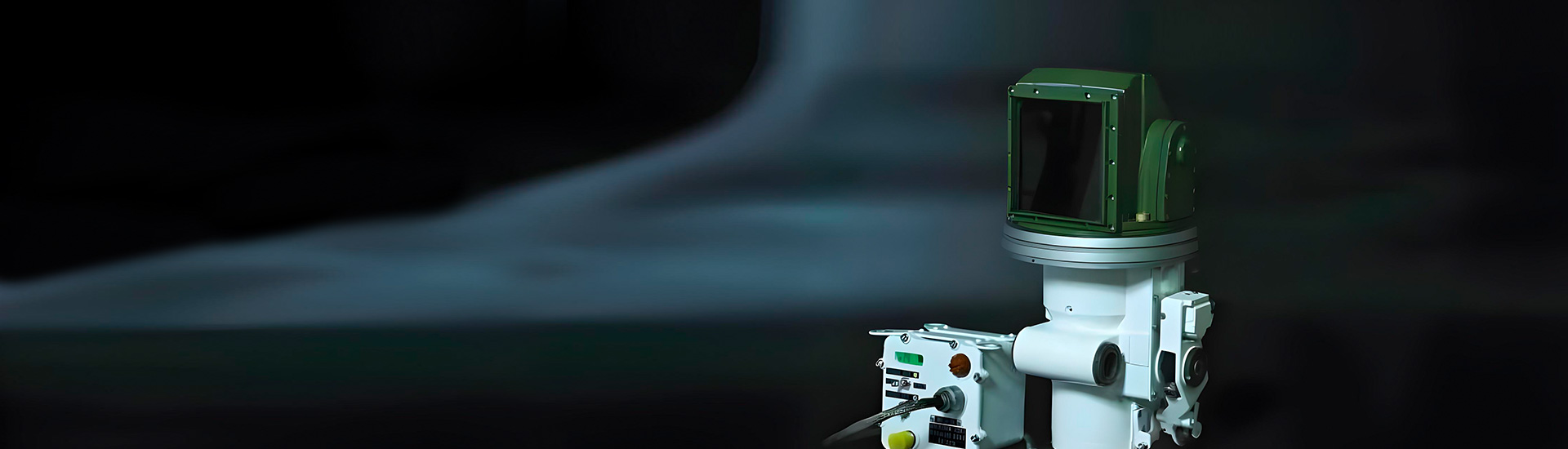

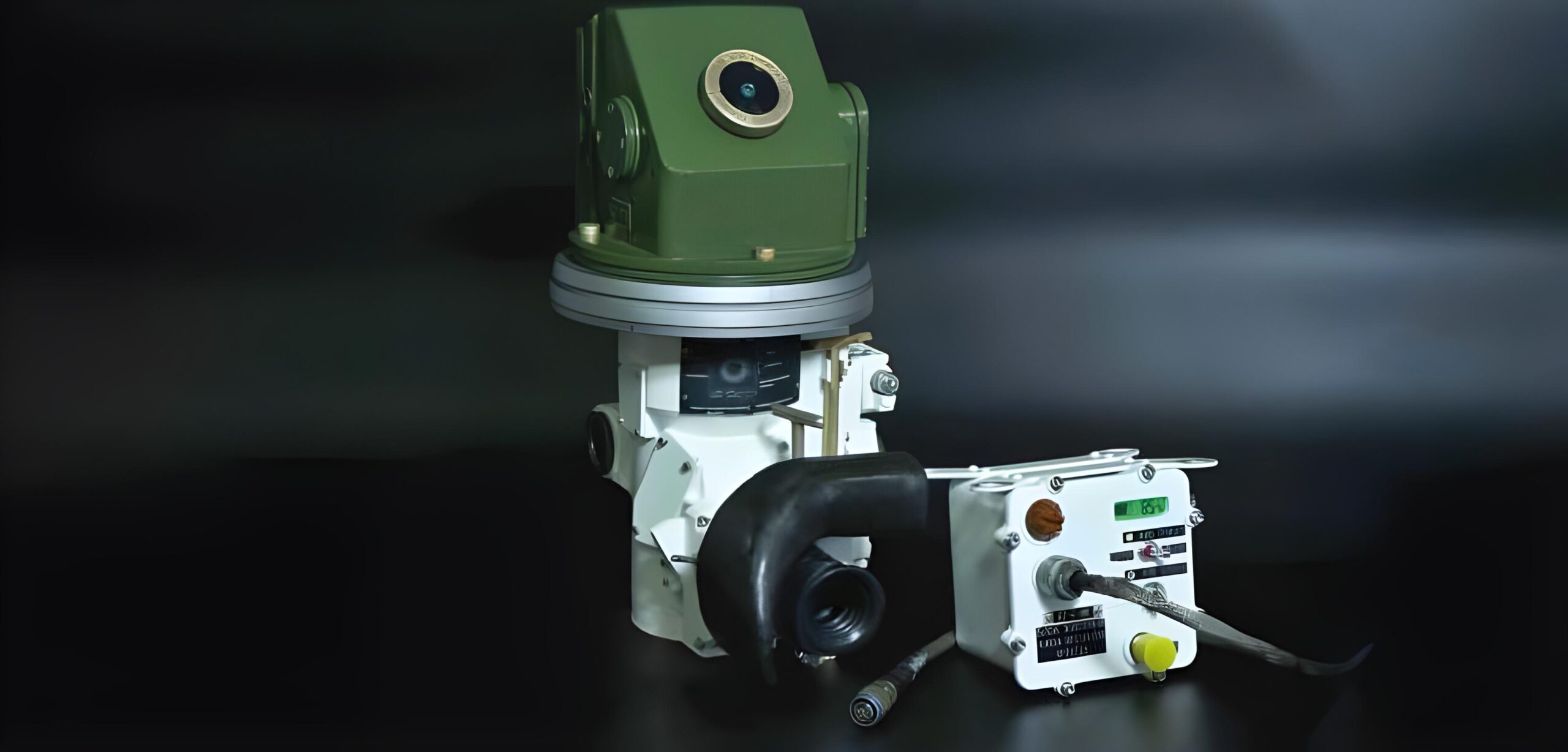

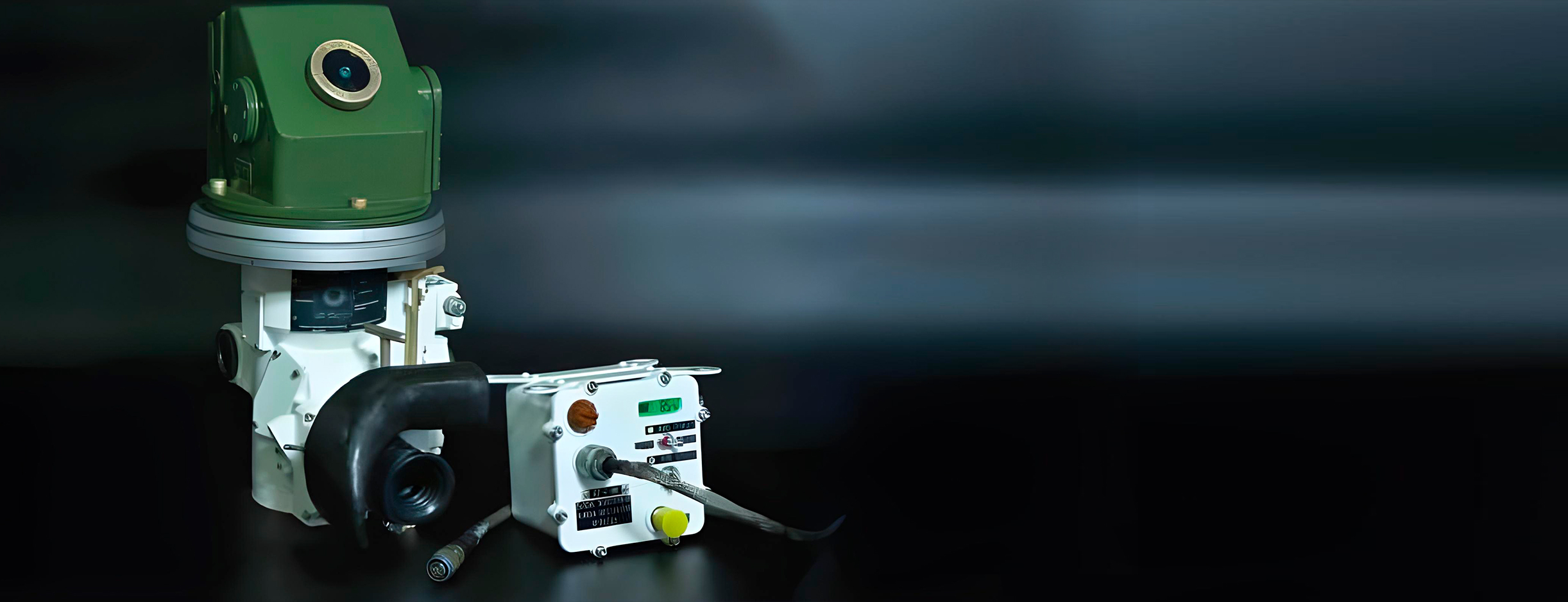

The set of the tank gunner‘s sight TPN-1-AM is designed for the modernization of the main combat tanks T-55, T-64, and T-72.
Saving the dimensions of its predecessor, the upgraded sight has received a number of significant advantages, exceeding a lot of the capabilities of the old Soviet sight. Thus, due to the integration of the cooled detector, the range of target detection was increased to 14800 yards, against 875 yards in the old sight, and recognition – up to 5360 yd, against 440 yd.

Improved functional parameters of the upgraded sight extend the operational capabilities of the operator on the
battlefield. The upgraded tank sight TPN-1-AM is available in 2 modifications: with the uncooled detector (AM1) and cooled detector (AM2).

Technical characteristics

THERMAL IIMAGIING CHANNEL

AM1
AM2

CAMERA TYPE

Uncooled Cooled

DETECTOR

640 x 512 , 17μ 8–14μ 640 x 480, 15μ 3–5μ

SENSITIVITY

‹30mK ‹20mK

ANGULAR FIELD OF VIEW (WIDE) (H X V)

42.2° 28°

ANGULAR FIELD OF VIEW (NARROW) (H X V)

6.2° 28°

DETECTION / RECOGNITION (VEHICLE)

6700 yd / 1760 yd 14800 yd / 5300 yd

RANGEFIINDER

AM1
AM2

DISTANCE MEASURED BY LRF (NATO TARGET)

3300 yd –

LRF WAVELENGTH

1550 nm –

BALLIISTIIC COMPUTER

AM1
AM2

MAX. MEASURABLE DISTANCE 2500 M CALCULATION TIME

3300 yd –

DRUG FUNCTIONS

G1, G7, multi BC or user defined –

CALCULATION TIME

220 yd/sec –

OPERATING PARAMETERS

AM1
AM2

FOCUSING

mechanical motorized

LATCHING DATA

photo/video recording photo/video recording

TEMPERATURE RANGE

-22°F ÷ +131°F -22°F ÷ +131°F

PROTECTION LEVEL

IP67 IP67
