Thermal Devices for Combat Vehicles and Tanks

Optoelectronic module

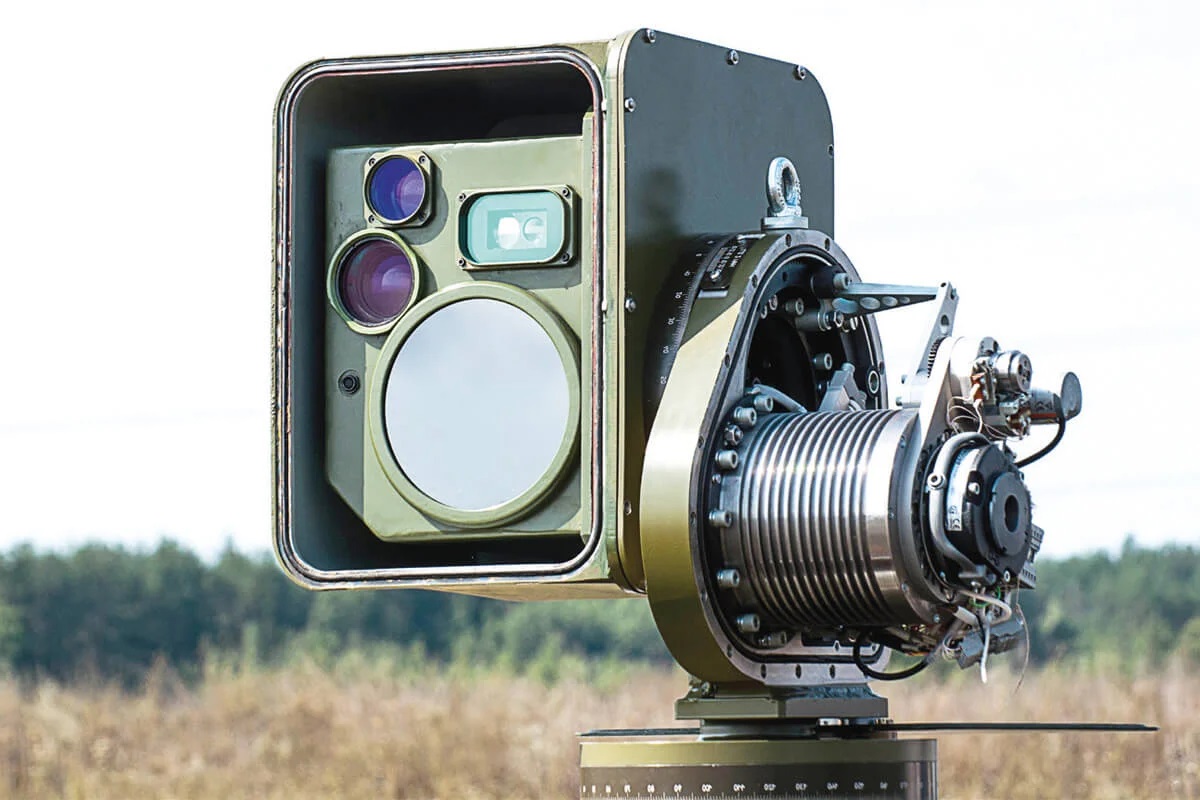

Kazhan 3K10, 3K15

Used for installation on combat modules on APCs (Armored Personnel Carriers), IFVs (Infantry Fighting Vehicles), and other armored vehicles and tracked vehicles. Integrates with built-in fire control systems.
NATO Stock Number

Overview

Devices of KAZHAN series are multispectral optoelectronic devices intended for use as a part of surveillance,
reconnaissance and fire control systems. The series is designed to record target environment, determine the range in natural and dimmed lighting,and detect objects and terrain thermal radiation.

Depending on the model type, KAZHAN devices are used in stationary lookout stations; as a part of autonomous
combat modules; on armored vehicles; as a part of shipboard surveillance and fire control systems.
KAZHAN series has several detection channels (1-3) in different spectral bands (visible and LWIR) and a rangefinder channel.

Digital processing unit as a part of OEM KAZHAN provides:

Primary and secondary digital image processing
Automatic target detection
Target tracking

Raw data recording
Data transfer to a central observation post in digital and analog form

Technical characteristics

THERMAL IMAGING CHANNEL T5 (3K10)

TYPE OF CAMERA

uncooled

DETECTOR

640 x 512, 17μ 8-14μ

FOCAL LENGTH

100 mm

OBJECTIVE F NUMBER

F/1.0

ANGULAR FIELD OF VIEW (H X V)

6.2° x 5.0°

RECOGNITION / IDENTIFICATION (HUMAN)

3000/765 yd

RECOGNITION / IDENTIFICATION (VEHICLE)

8750/2515 yd

THERMAL IMAGING CHANNEL T1 (3K15)

TYPE OF CAMERA

uncooled

DETECTOR

640 x 512, 17μ 8-14μ

FOCAL LENGTH

150 mm

OBJECTIVE F NUMBER

F/1.0

ANGULAR FIELD OF VIEW (H X V)

4.2° x 3.3°

RECOGNITION / IDENTIFICATION (HUMAN)

4600 / 1650 yd

RECOGNITION / IDENTIFICATION (VEHICLE)

11000 / 4000 yd

THERMAL IMAGING CHANNEL T3 (3K15)

TYPE OF CAMERA

uncooled

DETECTOR

640 x 512, 17μ 8-14μ

FOCAL LENGTH

25 ÷ 225 mm

OBJECTIVE F NUMBER

F/1.5

ANGULAR FIELD OF VIEW (H X V)

÷ 2.7° x 2.2°

RECOGNITION / IDENTIFICATION (HUMAN)

7100 / 2200 yd

RECOGNITION / IDENTIFICATION (VEHICLE)

17500 / 5500 yd

DAYTIME CHANNEL

С3 / С4 (3K10)

С1 (3K15)

TYPE OF CAMERA

CMOS

DETECTOR

1/3″ CMOS 1280 x 1024 60fps

1/4″ CMOS 1280 x 1024 60fps

LENS FOCAL LENGTH

3.5 ÷ 150.5 mm

ANGULAR FIELD OF VIEW (WIDE)

H : 45.92° x V :38.2°

ANGULAR FIELD OF VIEW (NARROW)

H : 2.7° x V : 1.8°

SENSITIVITY

Chromatic image: 0.5 Lux/F1.4, monochromatic image: 0.05 Lux/F1.4

RANGE FINDER CHANNEL

R2 (3K10)

R5 (3K15)

MEASURING RANGE

33-6500 yd

55-16500 yd (on target with 85% coefficient of reflection)

MEASURING RANGE (OBJECT 2.3 X 2.3 M, VISIBILITY 12 KM, REFLECTION COEFFICIENT 30%, ACQUISITION PROBABILITY 90%)

3800 yd

55-7700 yd (on NATO standard target with 30%coefficient of reflection)

WAVELENGTH

1550 nm, safe for vision, invisible for night vision

BEAM DIVERGENCE ANGLE

0.8 x 0.8 mrad

0.3 mrad

MEASURING FREQUENCY

0.5 Hz

10 Hz

DAYTIME CHANNEL

С3 / С4 (3K10)

С1 (3K15)

TYPE OF CAMERA

CMOS

DETECTOR

1/3″ CMOS 1280 x 1024 60fps

1/4″ CMOS 1280 x 1024 60fps

LENS FOCAL LENGTH

3.5 ÷ 150.5 mm

ANGULAR FIELD OF VIEW (WIDE)

H : 45.92° x V :38.2°

ANGULAR FIELD OF VIEW (NARROW)

H : 2.7° x V : 1.8°

SENSITIVITY

Chromatic image: 0.5 Lux/F1.4, monochromatic image: 0.05 Lux/F1.4

DIGITAL SIGNAL PROCESSING MODULE Е2 (3K10), Е1 (3K15)

FORMATION OF THE AUXILIARY VIDEO INFORMATION

Aiming marks: textual and graphical

MOVEMENT DETECTOR

Automatic detection of moving objects

AUTOMATIC TARGET TRACKING

Acquisition and tracking of an indicated target

CONTRAST / SIZE / TARGET SPEED

›0.4 / 10×10 pixel / ‹150 pixel/sec

DIGITAL IMAGE PROCESSING

Combination of 2 channels by different algorithms

ELECTRONICS

PROTECTION CLASS

IP67, ice protection

TEMPERATURE RANGE

-22°F ÷ +131°F

DIMENSIONS

10.31 x 8.35 x 9.92 in, 11.30 x 10 x 12.99 in

WEIGHT

≤26.5 / 40 / 45 lbs

INTERFACES

CONTROL

RS422, RS232 (optional Ethernet, CAN)

VIDEO DATA (ANALOG)

VGA, CVBS (PAL, NTSC)

VIDEO DATE (DIGITAL)

HDMI (optional SDI , SDI-HD, Ethernet)

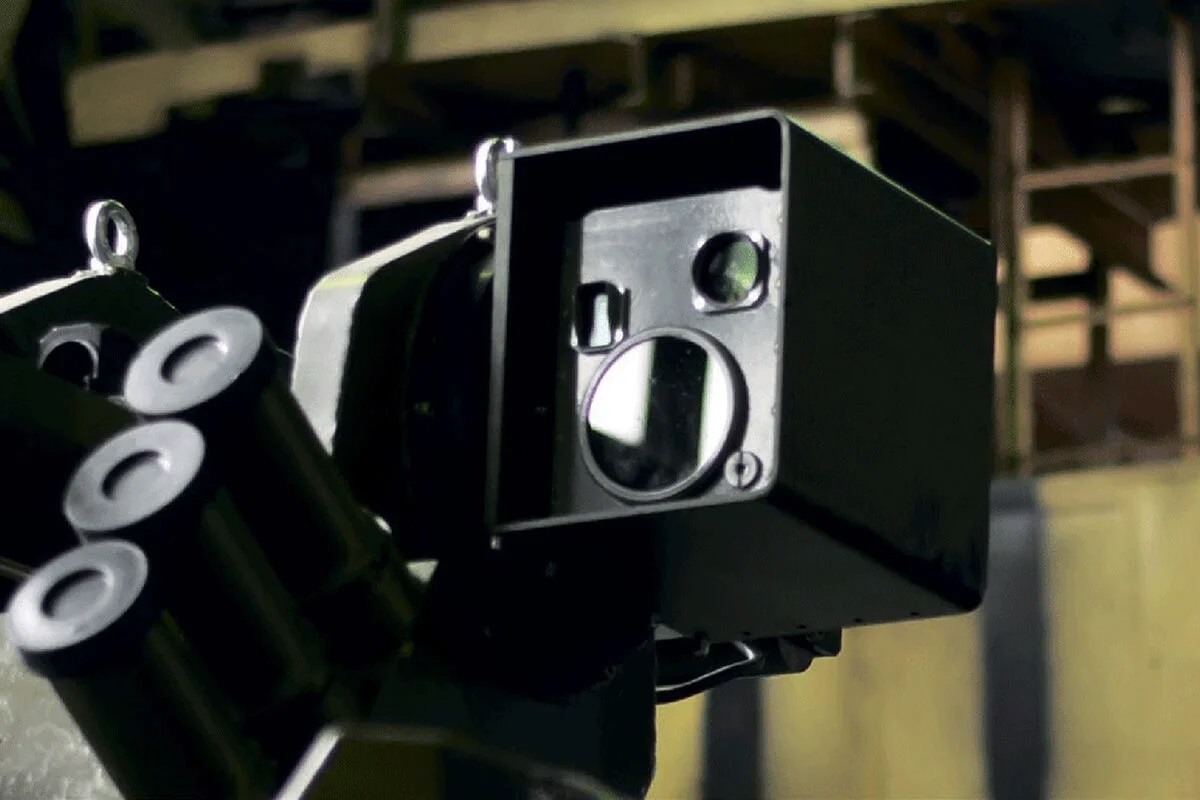

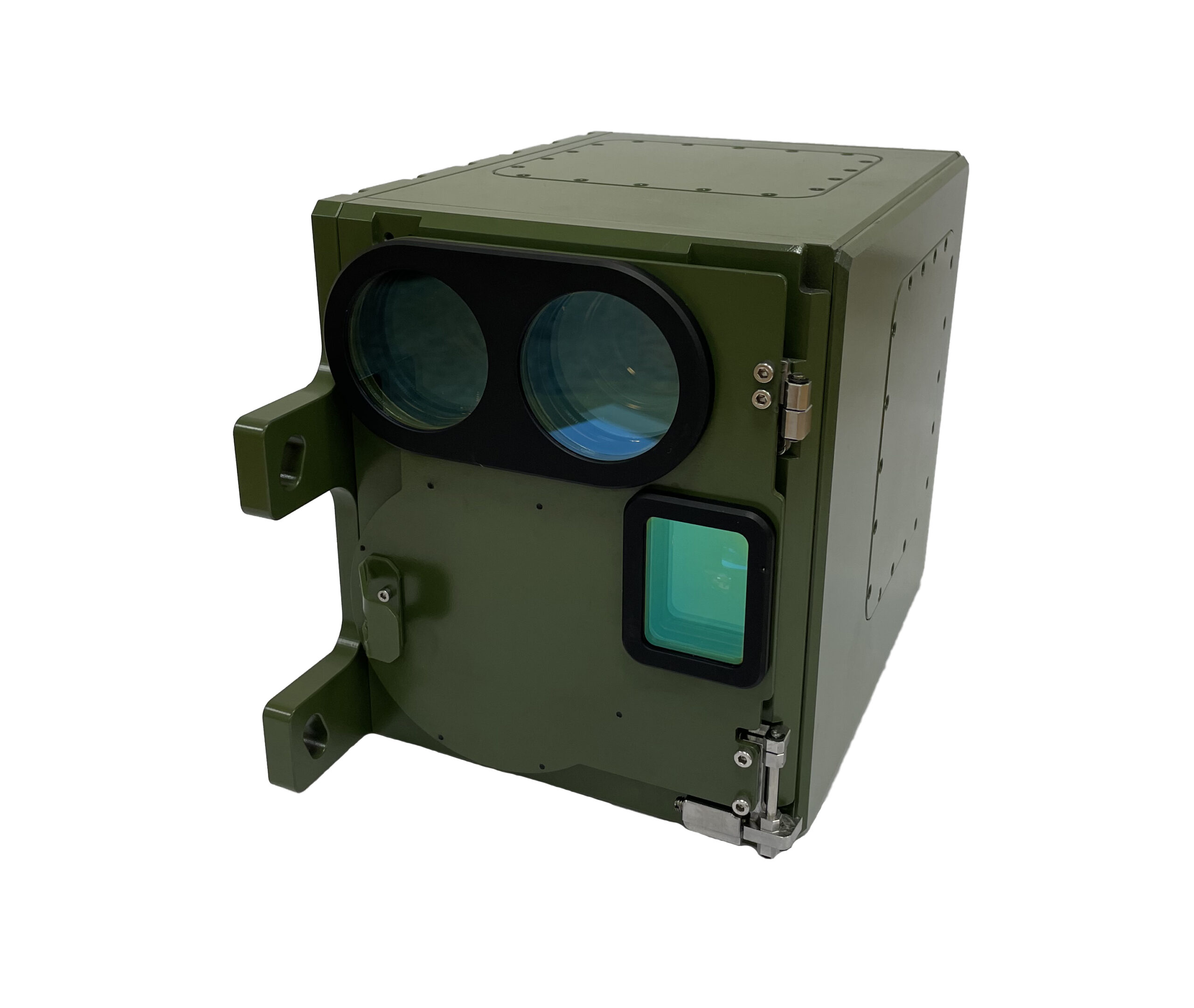

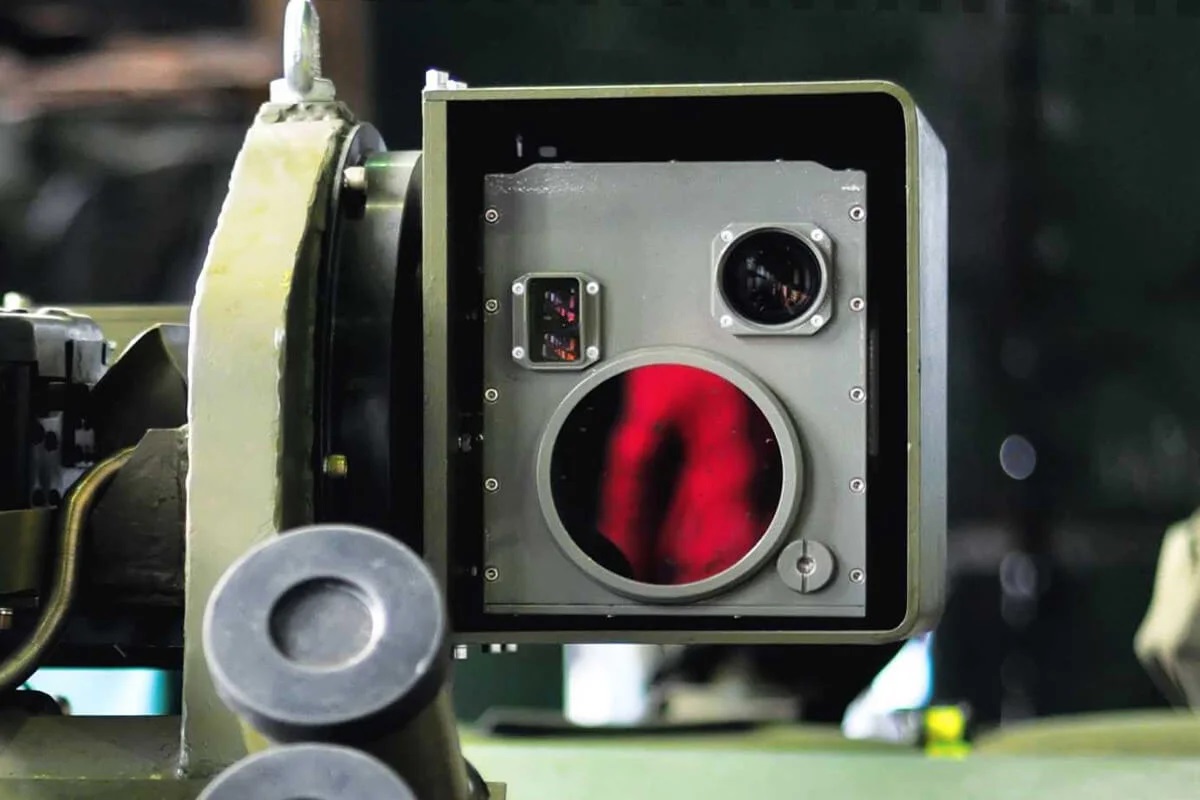

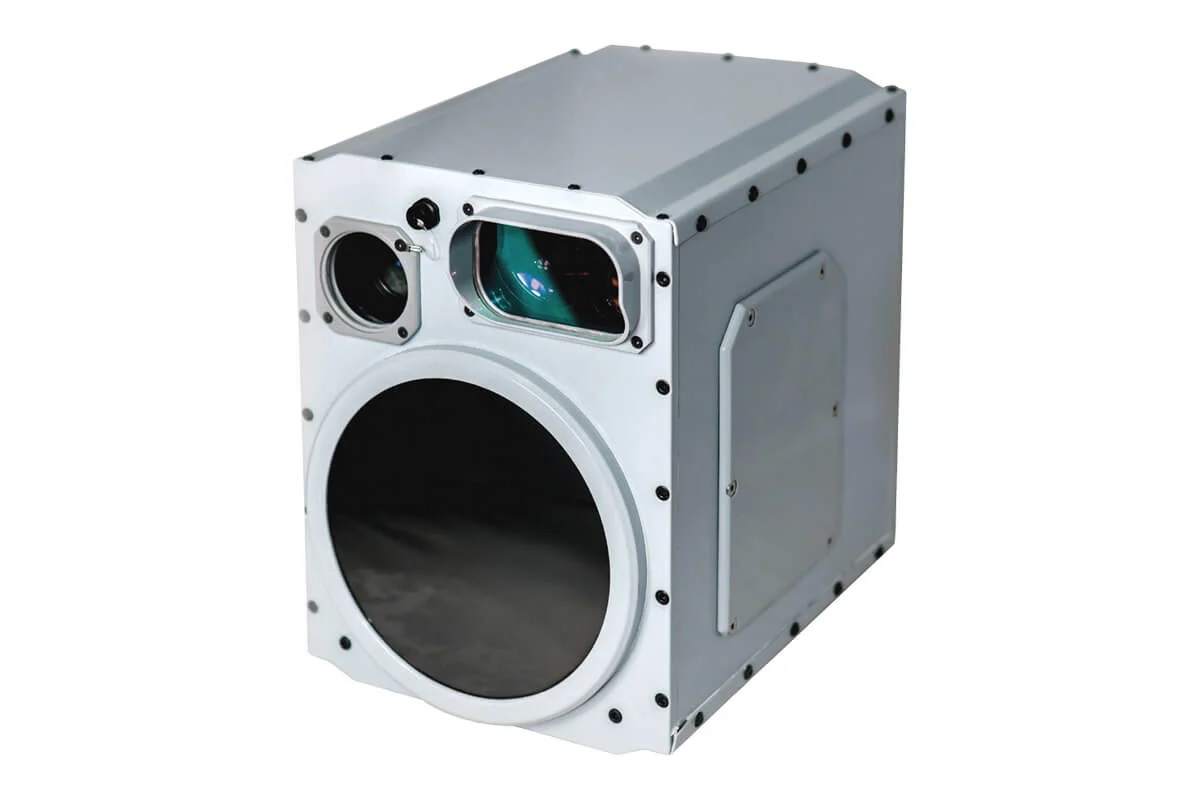

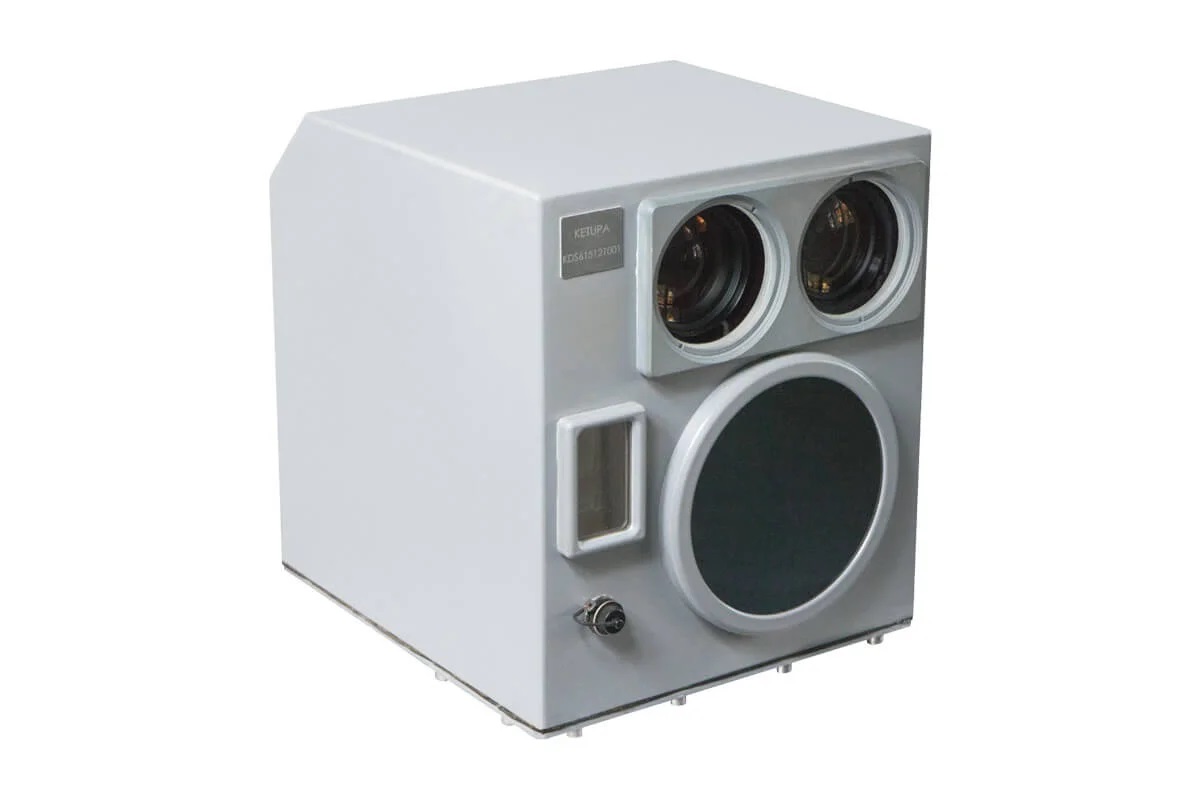

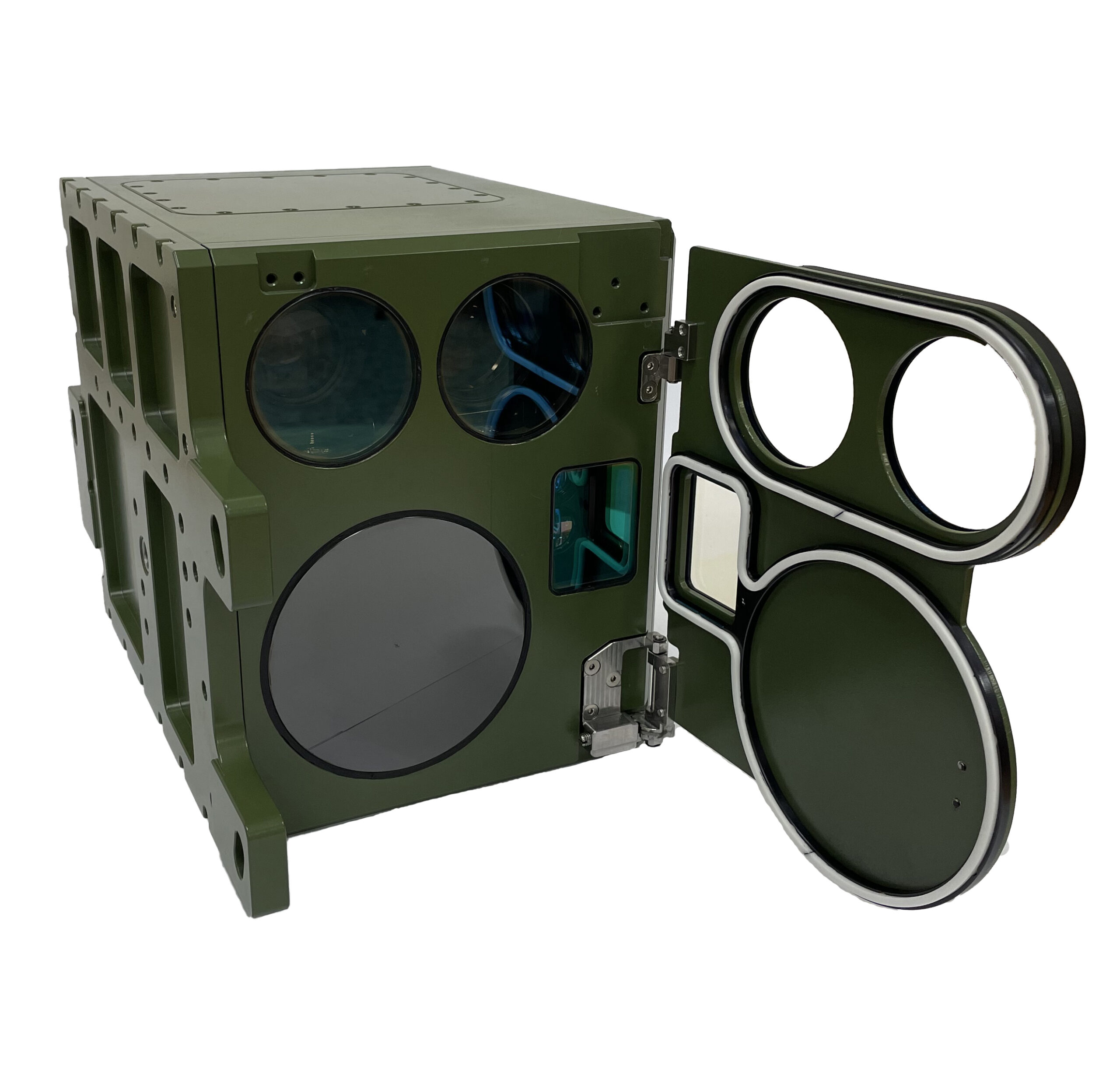

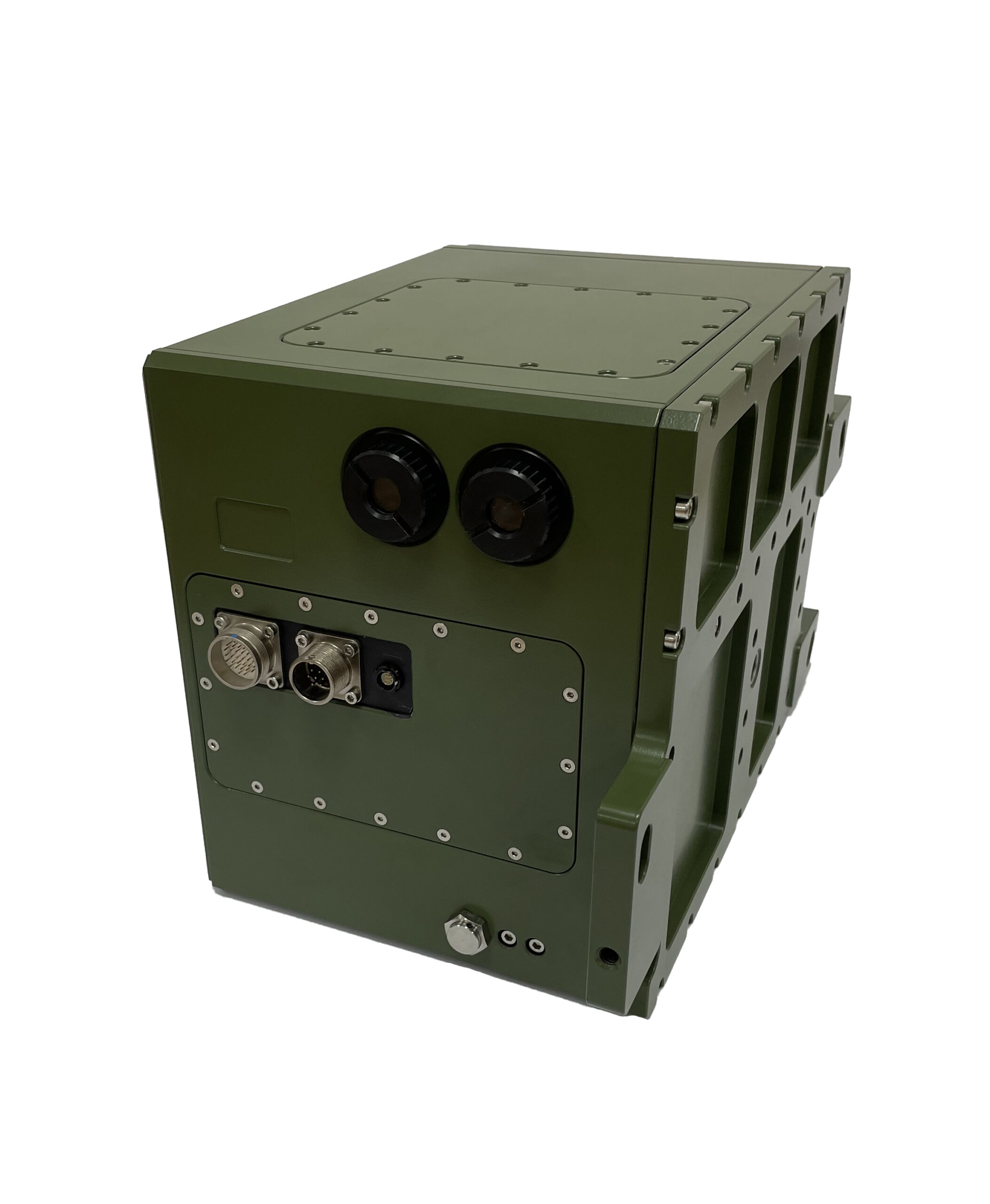

Photos and videos
