DETECTOR TYPE
Thermal imaging camera
Archer AT-300
-
Designed for installation on the "Stugna-P" anti-tank missile system
- Features a cooled type of infrared sensor
-
Enhances the system's capabilities for operation in conditions of complete darkness and limited visibility
-
NATO Stock Number

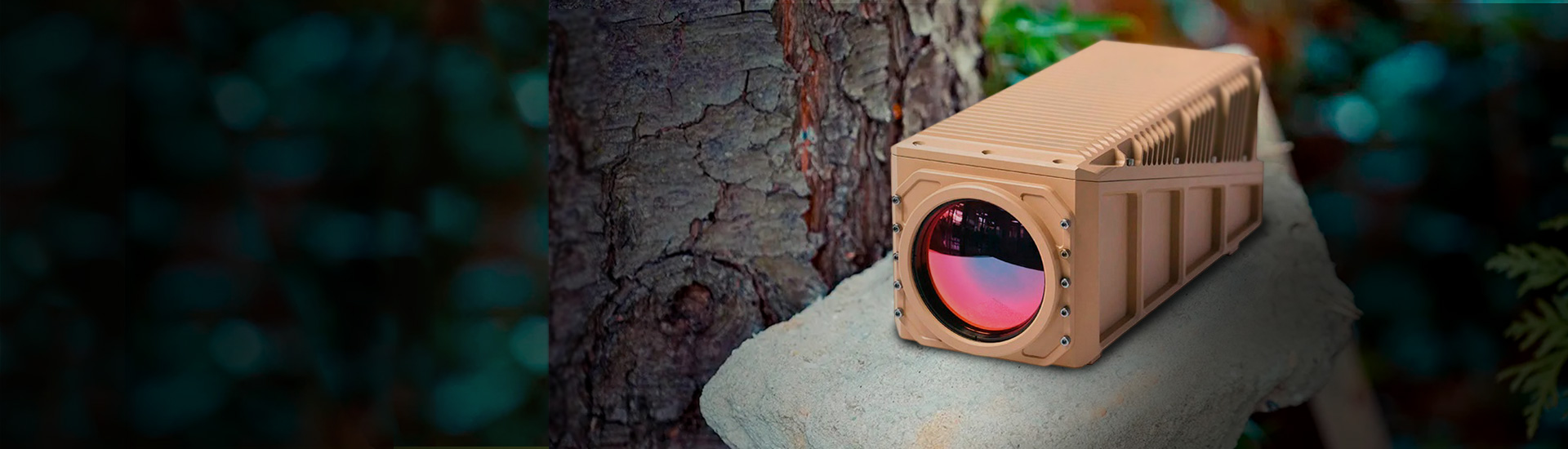

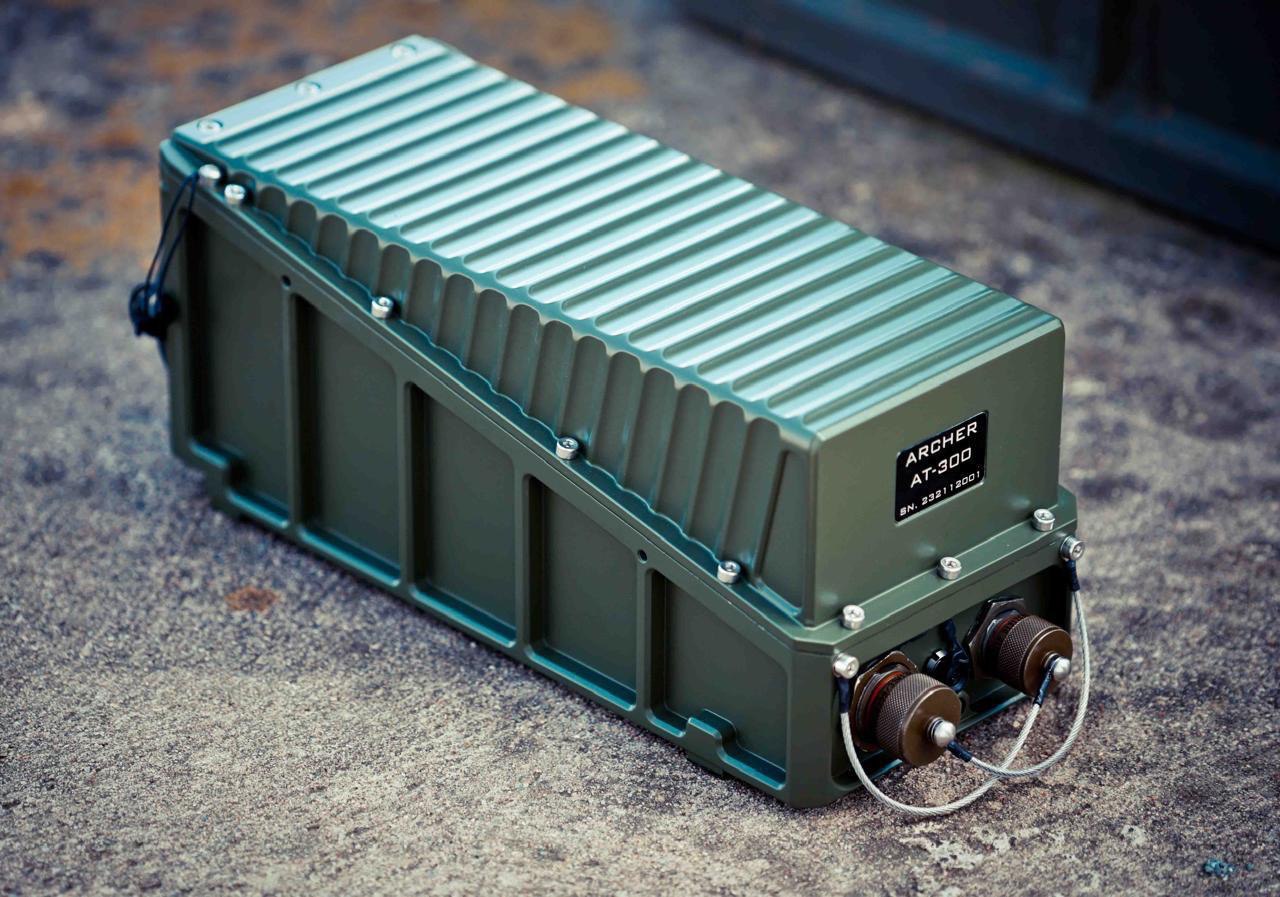

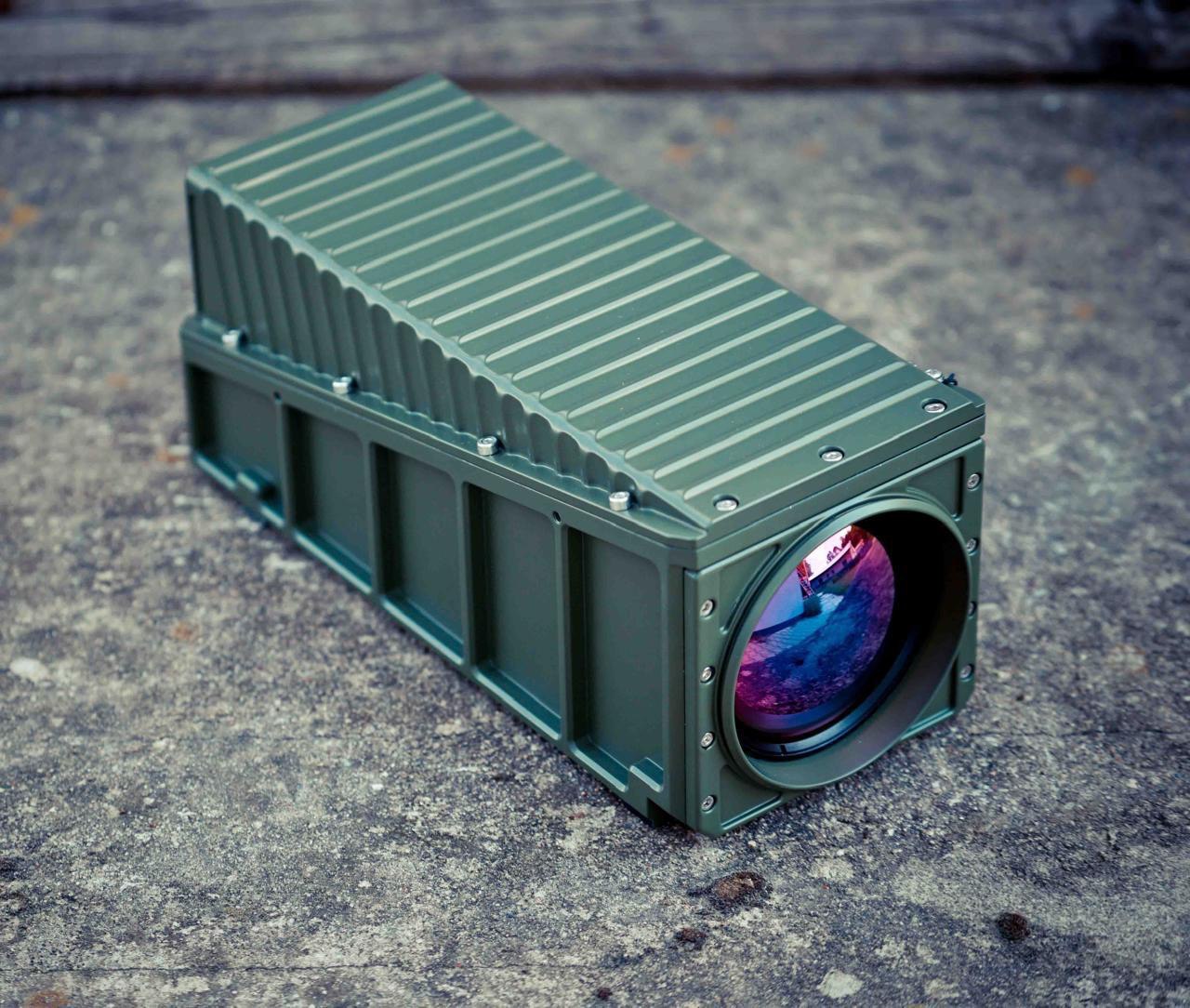

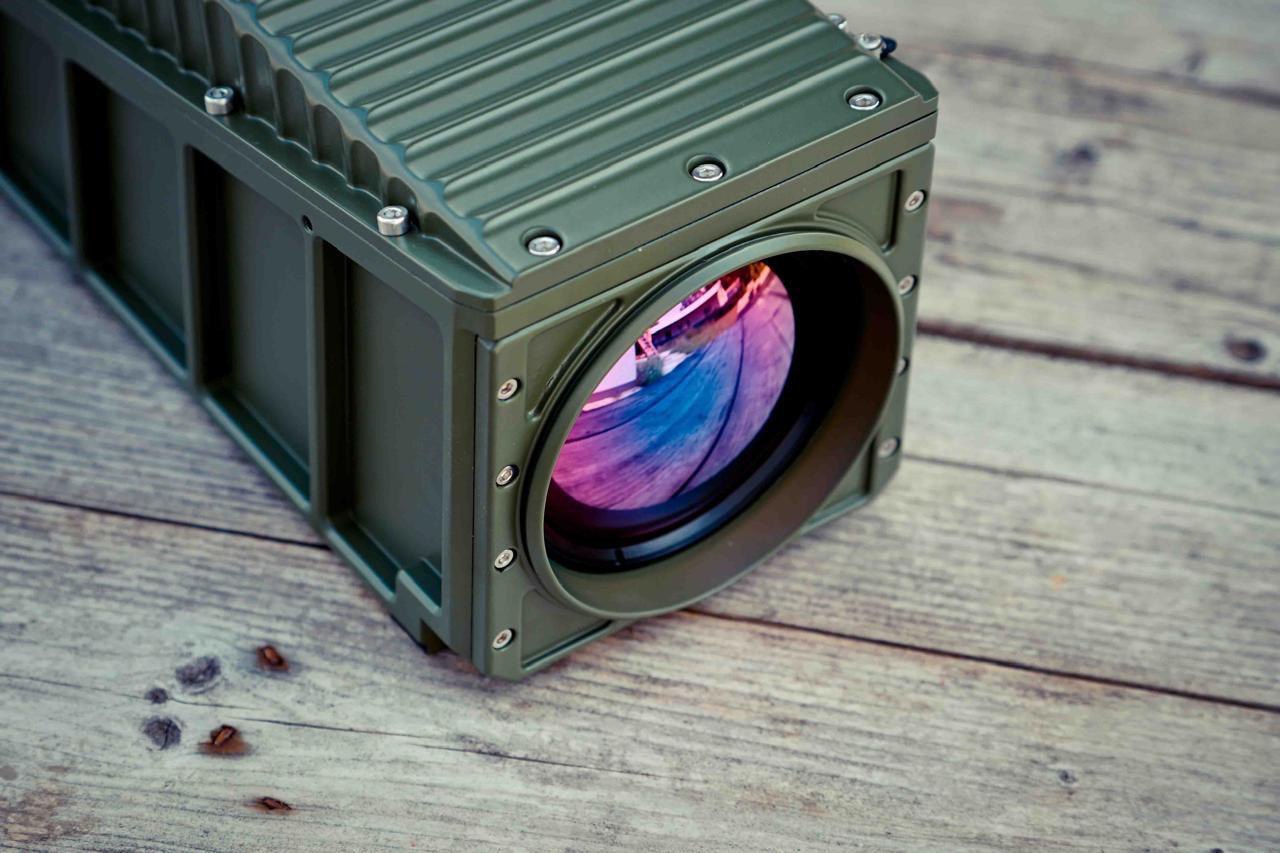

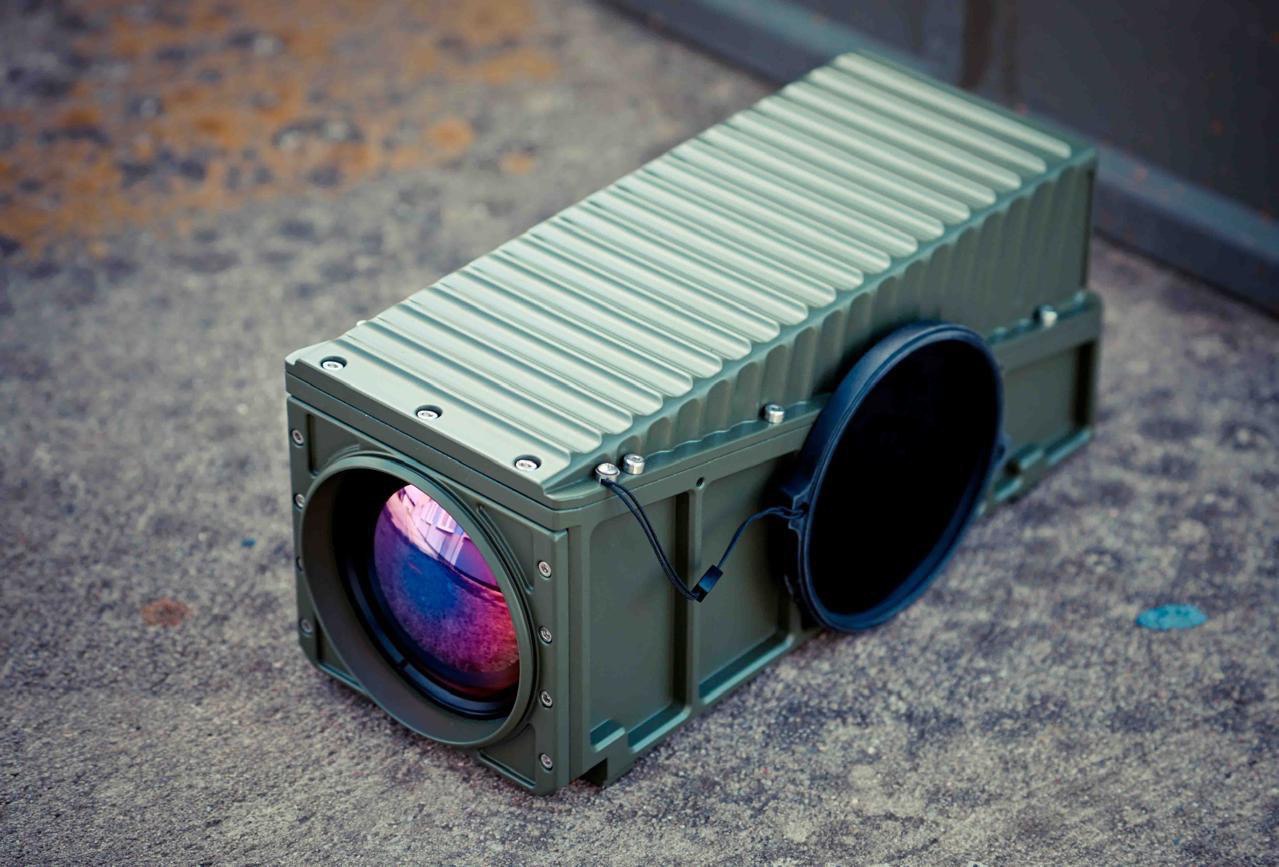

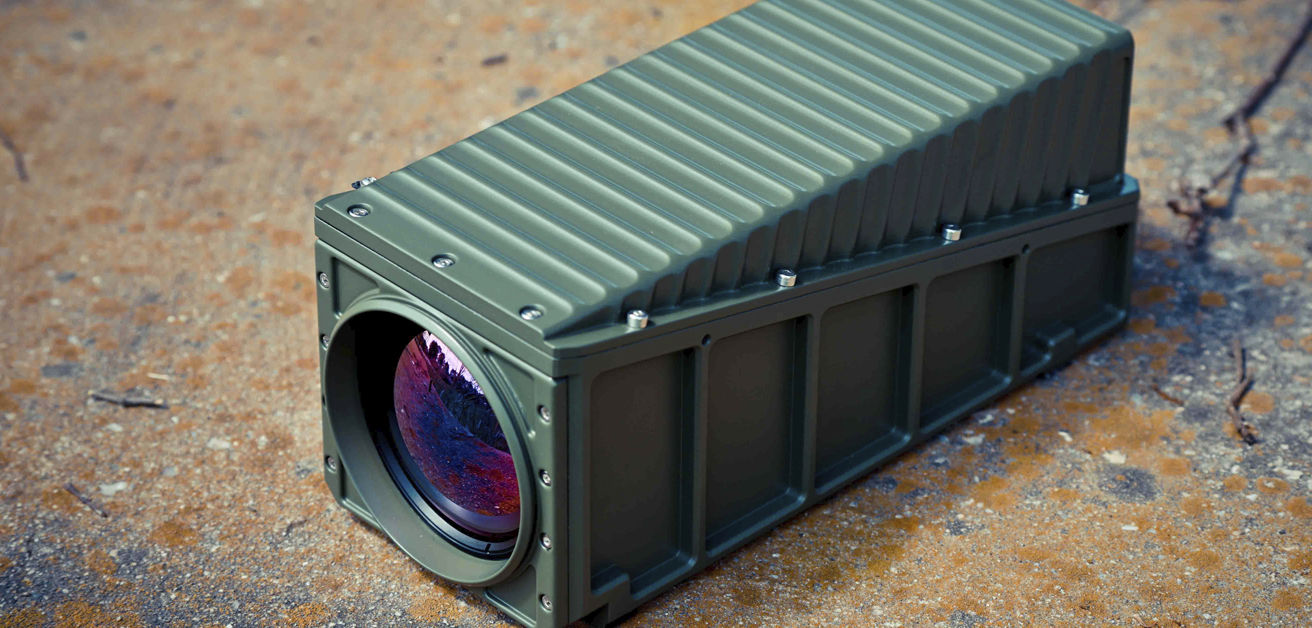

Thermal imaging cooled camera Archer AT-300 is the latest advanced specialized camera designed to detect, recognize and identify objects at long distances and in limited visibility: lack of light, smoke or fog.
The sight differs from uncooled systems by far more operating radius while providing much better sensitivity and contrast in dynamic scenes. The cooled sensor can detect the slightest changes in temperature up to 32.18°F even at a distance of up to 330 yards. Quick autofocus saves the thermal image ‘s precision in the magnification process. Due to new and more effective image processing algorithms, Archer AT-300 with a sensitive cooled detector generates clear images on the battlefield and provides long-range target detection.
Archer AT-300 camera version is developed for use in conjunction with the anti-tank missile system Stugna-P.
Range of action
man sized target (15-300mm objective).
Possible deviation: ± 15%
Detection
18000 yd
Recognition
7000 yd
Identification
4200 yd
Features
- USB interface for programming and device control
- 2x, 4x digital zoom
- Sensitivity settings of the detector
- Different colour schemes for image refinement
- Manual calibration of the detector
- Option to connect an external power supply
- Analog video output with the possibility of switching off
